NG-PTN

A highly scalable, agile and intelligent metro transport network based on the next generation HW and SW architecture of PTN. The product line offers support of up to 100GE interfaces, SDN-based automation features and advanced services, as well as a broad range of carrier-class features including network-wide time/clock synchronization, carrier class sub 50ms recovery resiliency, guaranteed QoS and SLA enforcement, end-to-end multi-layer OAM. The product line includes a complete line of network elements from access and edge to metro core high-performance devices.


Description

TN765

TN765 is an ultimate performance MPLS-TP/CE based core device with full duplex redundant 960Gbps switching fabric and 100Gbps transmission. TN765 has a modular architecture and supports redundancy for all critical modules, offering a true carrier-class core solution. TN765 provides a wide range of client interfaces and high capacity network interfaces to optimize capital expenditures. Available in a 9U form factor, the TN765 offers GE, 10GE, 100GE interfaces.

Features
  • 100GE/10GE/GE, 10G POS interfaces
  • Multi service support: E-LINE, E-TREE and E-LAN services
  • 960Gbps Full-Duplex Switching Fabric
  • MPLS-TP/CE based
  • VPLS/H-VPLS support
  • Quality of service
  • Multiple OAM options, including  Y.1711and G.8113.x
  • Flexible network protection schemes and hardware redundancy
  • Multiple synchronization options including IEEE 1588V2 support
  • Unified element and network  management
  • Modular carrier class design

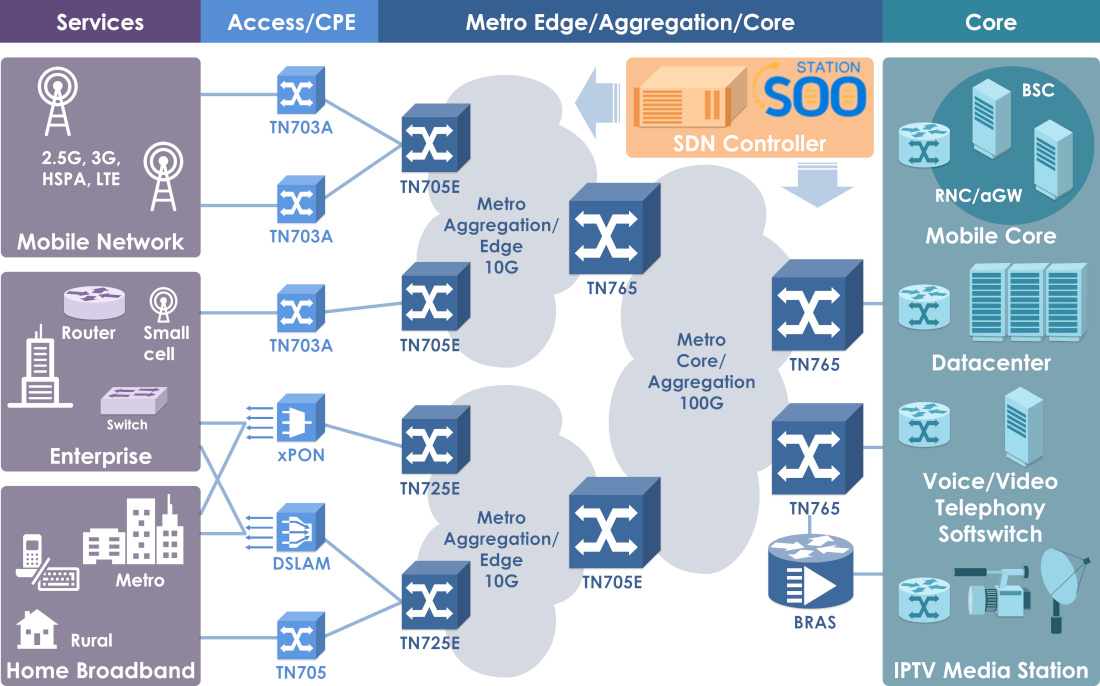

Network Architecture
Product Pictures
Data Sheet: NetRing TN765
Brochure: Packet Optical Transport Solution
White Paper: MPLS-TP based Packet Transport Networks
